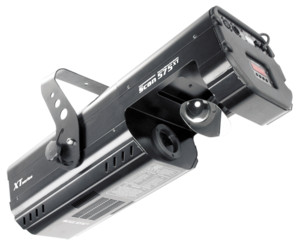

ROBE-SCAN 575XT

The Scan 575 XT is ideal for bigger clubs and spaces where high light output is vital, thanks to a 575 Watt lamp and specially engineered optics.

Features include 2 combinable gobo wheels, one offering static gobos and one with rotating gobos; remote focus, iris, rotating prism, frost filter and both CTO and CTB correction filters.



"/>
Image Header
THIẾT KẾ CUNG CẤP THIẾT BỊ LẮP ĐẶT : RẠP HÁT, CHIẾU PHIM – VŨ TRƯỜNG – BAR, KARAOKE – KHÁCH SẠN – HỘI THẢO ĐA NGÔN NGỮ- CÁC GIẢI PHÁP VỀ CÔNG NGHỆ THÔNG TIN VIỄN THÔNG.

ROBE-SCAN 575XT

ROBE-SCAN 575XT
Giá bán: Liên hệ

ROBE-SCAN 575XT

The Scan 575 XT is ideal for bigger clubs and spaces where high light output is vital, thanks to a 575 Watt lamp and specially engineered optics.

Features include 2 combinable gobo wheels, one offering static gobos and one with rotating gobos; remote focus, iris, rotating prism, frost filter and both CTO and CTB correction filters.



Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02
  • Thông tin sản phẩm
  • Thông số kỹ thuật

THÔNG SỐ ROBE-SCAN 575XT

Source

  • Lamp: Osram HMI 575W/GS
  • Base: SFc10
  • Control: Automatic and remote on/off
  • Ballast: Magnetic

Optical System

  • Standard objective: 15°
  • Optional objective: 12°

Electrical Specification

    • Wiring options - EU model: 208/230/240V, 50/60Hz, US model: 100/120/208/230V, 50/60Hz
    • Power consumption: 850VA at 230V/50Hz


Mechanical Specification

  • Height: 346 mm (13.6″) - bracket in horizontal position
  • Width: 306 mm (12.1″)
  • Depth: 759 mm (29.9″)
  • Weight: EU model - 22 kg (48.5 lbs), US model - 25 kg (55 lbs)

Thermal

  • Maximum ambient temperature (Ta): 45°C (113°F)
  • Maximum surface temperature: 80°C (176°F)

Static Gobos

  • Metal gobos - outside diameter: 26.9 mm, image diameter: 22.5 mm, stainless steel, thickness: 0.15 mm
  • Dichroic gobos - outside diameter: 26.8 mm, thickness: 1.1 mm, high temperature borofloat or better glass

Rotating Gobos

  • Metal gobo - outside diameter: 26.9 mm, image diameter: 22.5 mm, stainless steel, thickness: 0.15 mm
  • Dichroic gobo - outside diameter: 26.8 mm, image diameter: 22.5 mm, thickness: 1.1 mm, high temperature borofloat or better glass
  • Glass gobos - outside diameter: 26.8 mm, max. thickness: 4 mm, high temperature borofloat or better glass

Control and Programming

  • Protocol: USITT DMX-512
  • Control channels: 14 or 16
  • Bilt-in demo sequences
  • Display: 4-digit LED display
  • Pan/Tilt resolution: 8 or 16bit
  • Master/Slave operating
  • Stand-alone operation
  • 3-editable programs, each up to 99 steps
  • Controllable speed of fans
  • Buit-in analyzer for easy fault finding
  • Data in/out: Locking 3-pin XLR
