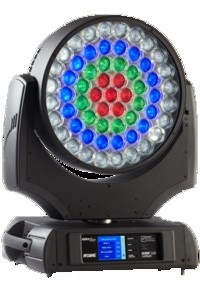

ROBE - ROBIN 1200 LED Wash

Giá bán: Liên hệ

ROBIN 1200 LEDWash

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

THÔNG SỐ ROBIN 1200 LED WASH

Source:

Light source: 61 RGBW LED multichips
Led Life Expectancy: minimum 60.000 hours
Typical Lumen Maintenance: 70% @ 60.000 hours

Optical System and Effects:

High efficient component optics
Linear motorized zoom 8° – 63°
RGBW/CMYW, 8-bit or 16-bit colour mixing
CTO filter
Virtual colour wheel with pre-programmed 237 colours including whites (2700 K, 3200 K, 4200 K, 5600 K and 8000 K)
4 LED rings, individual colour control of each LED ring
Tungsten lamp effect at whites 2700 K and 3200 K
Colour rainbow effects in both directions with variable speed
Zone colour effects in both directions with variable speed
High resolution dimmer 0–100%
Strobe effect with variable speed (max. 20 flashes per second)
Individual zone strobe effects with variable speed
Pre-programmed random strobe & pulse effects

Electrical Specifications:

Electronic auto-ranging
Input voltage: 100-250 V AC, 50-60 Hz

Power Consumption:

Typical consumption: 550 W (2 LED colours @ all rings)
Max. consumption: 680 W (4 LED colours @ all rings)

Mechanical Specifications:

Height: 570 mm (22.4")
Width: 439 mm (17.3")
Depth: 268 mm (10.5")
Weight: 18 kg (39.7 lbs)

Movement:

Pan movement range 450°
Tilt movement range 300°
16-bit movement resolution
Automatic Pan/Tilt position correction
Built-in Pan/Tilt macros

Thermal:

Maximum ambient temperature: 45 °C (113 °F)
Maximum housing temperature: 75 °C (167 °F)

Control and Programming:

Setting & Addressing: ROBE Navigation System 2 (RNS2)
Protocols: USITT DMX-512, RDM, ArtNet, MA Net, MA Net2
Wireless CRMX™ technology from Lumen Radio included as standard accessory
Control channels: 45, 21, 15, 10, 45, 37
6 DMX protocol modes
3-editable programs, each up to 100 steps
Stand-alone operation
QVGA Robe touch screen with battery backup, gravitation sensor for auto screen positioning, operation memory service log with RTC
Ethernet port: Art-Net protocol, ready for ACN
Data in/out: Locking 3-pin & 5-pin XLR
Built-in analyzer for easy fault finding

Rigging:

Mounting points: 2 pairs of 1/4-turn locks
2x Omega bracket with 1/4-turn quick locks
