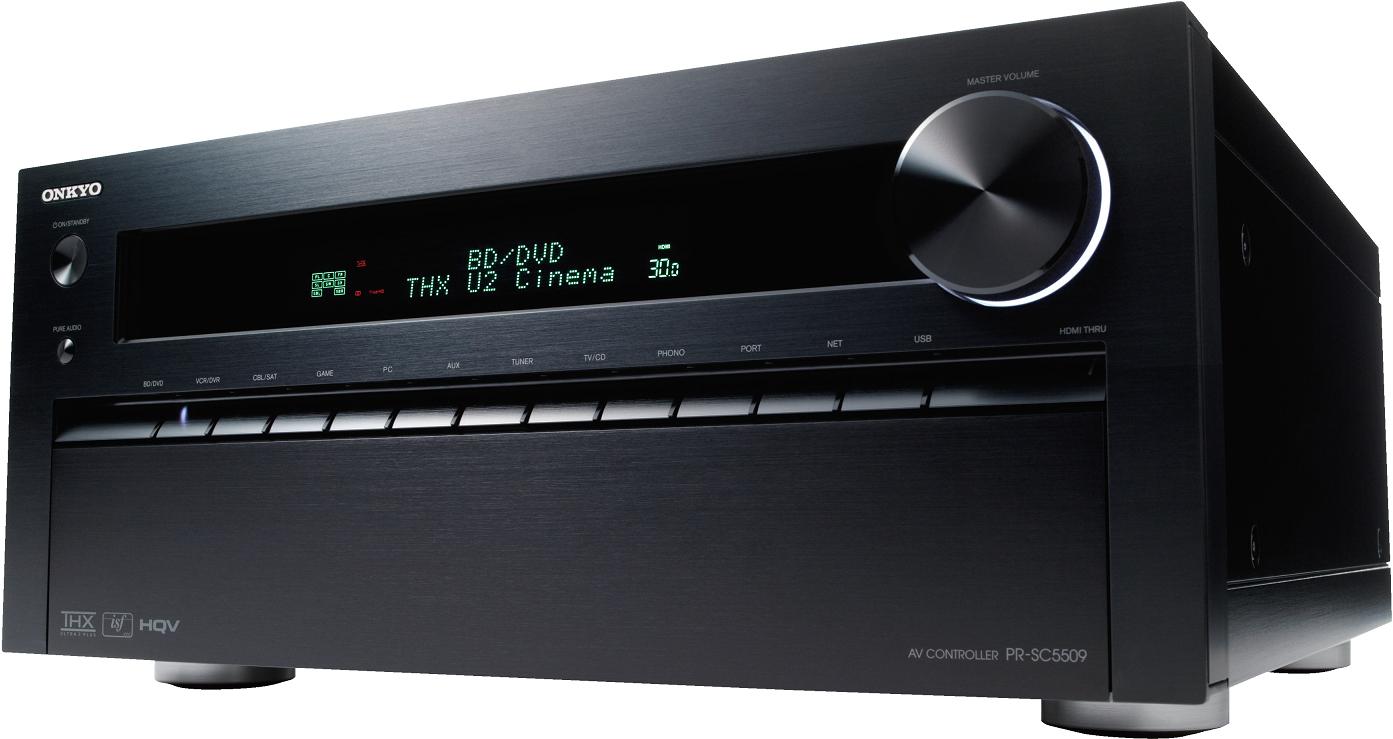

ONKYO Receiver PR-SC-5509

Pre xử lý đa kênh Onkyo PR-SC5509 với những tính năng của một thiết bị xử lý home theater cao cấp như:

- Khả năng xử lý âm thanh vòm 9.2 kênh.

- Tiêu chuẩn THX Ultra2 Plus Certifiled, MultEQ XT32 hỗ trợ cân chỉnh cho phòng có khoảng cách ngồi xem trên 4m.

- Ngoài ra các cài đặt được hiển thị với giao diện thông minh giúp người sử dụng dễ dàng tinh chỉnh.

Điều quan trọng nhất là phần kết nối. Em nó có thể phối hợp linh hoạt với các Power công suất lớn cho âm thanh sống động, chân thực nhất.

ADVANCED FEATURES

· THX® Ultra2 Plus™ Certified

· HDMI® Support for 3D, Audio Return Channel, DeepColor™, x.v.Color™, LipSync, Dolby® TrueHD, DTS-HD Master Audio™, DVD-Audio, Super Audio CD, Multichannel PCM, and CEC

· Massive Toroidal Transformer and Two Separate Transformers for Audio and Video Processing

· Separate Anti-Vibration Aluminum Panels

· VLSC™ (Vector Linear Shaping Circuitry) for All Channels

· High-Quality HQV® Vida™ VHD1900 Video Processor

· ISF (Imaging Science Foundation) Video Calibration for Optimal Video Performance

· HDMI Video Upscaling to 4K with Qdeo™ Technology by Marvell

· DTS Neo:X™, Audyssey DSX™, and Dolby® Pro Logic® IIz for Expanded Surround Channels

· Audyssey MultEQ® XT32 to Correct for Room Acoustics

· Direct Digital Connection of iPod/iPhone via Front-Panel USB Port

· Supports Onkyo Remote Apps for Control of A/V Receiver via iPod touch/iPhone*1 and Android Phone*2

· Playback of Audio Files Through Local Network (MP3, WMA, WMA Lossless, FLAC, WAV, Ogg Vorbis, AAC, LPCM)

· Internet Radio and Music Streaming Connectivity (vTuner, Last.fm*3, Spotify*3, AUPEO!)

· Bi-Amping Capability

· DSD Direct for Super Audio CD

· Zone 2/3 Pre-Outs and Subwoofer Pre-Outs, and Zone 2 Video Out for Distributed A/V Playback in Multiple Rooms

· Gold-Plated HDMI Terminals (2 Inputs and 1 Output Only)

· Gold-Plated, Machined Solid Brass A/V Terminals (19 mm-Pitch Inputs for TV/CD and Phono)

· Gold-Plated, 9.2-Channel Balanced XLR Pre Outs (with Front Bi- Amping Capability)

· Gold-Plated, 2-Channel Balanced XLR Inputs

*1 Compatible iPod/iPhone models: iPod touch 3rd generation or later; iPhone 3GS or later. (All models require iOS 4.2 or later.) *2 Requires Android OS 2.1 or later. *3 Availability of services depends on region.

PROCESSING FEATURES

· Dolby® TrueHD and DTS-HD Master Audio™ Decoding

· TI Burr-Brown 192 kHz/32-Bit DACs (PCM1795 x 6) for All Channels

· Advanced 32-Bit Processing DSP Chip

· Linear Optimum Gain Volume Circuitry

· PLL (Phase Locked Loop) Jitter-Cleaning Circuit Technology

· 4 DSP Modes for Gaming: Rock, Sports, Action, and RPG

· Advanced Music Optimizer for Compressed Digital Music Files

· Handles Playback of Mass Storage Class USB Memory

· Theater-Dimensional Virtual Surround Function

· Direct Mode and Pure Audio Mode

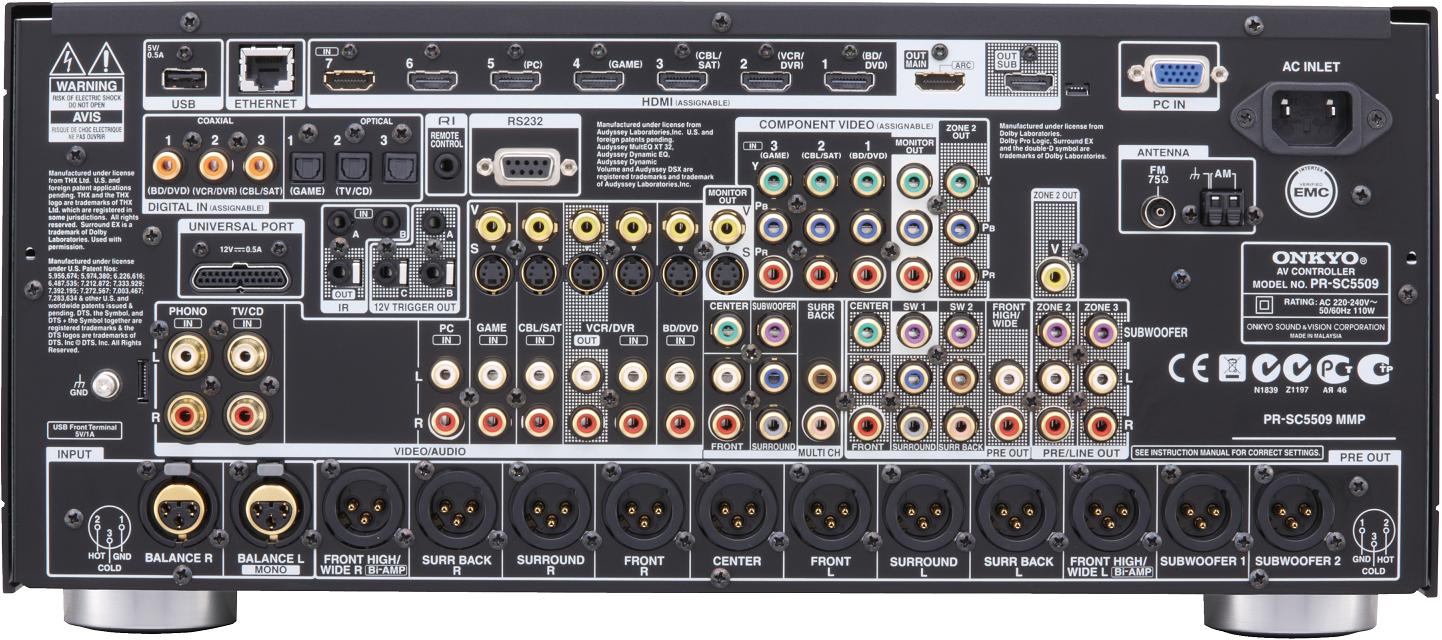

CONNECTION FEATURES

· 8 HDMI® Inputs (1 Front/7 Rear) and 2 Outputs

· Universal Port for Onkyo Peripheral Devices Such as UP-A1 Dock for iPod/iPhone or UP-DT1 DAB+ Radio Tuner

· 2 USB Ports (1 Front/1 Rear)

· Compatible with UWF-1 Wireless LAN Adapter (via Front-Panel USB Port)

· 3 Component Video Inputs and 1 Output

· 5 Composite Video Inputs and 2 Outputs

· 4 S-Video Inputs and 2 Outputs

· Analog RGB Input (D-sub, 15 pin) for PC Video

· 7 Digital Audio Inputs (4 Optical and 3 Coaxial)

· 8 Analog Audio Inputs and 1 Output

· Phono Input

· Color-Coded, 7.1 Multichannel Inputs

· Color-Coded, 9.2 Multichannel Pre-Outs (Including 2 Independent Subwoofer Pre-Outs)

· Dual IR Inputs with Common Output

· 12 V Trigger Outs (A, B, and C)

· RS232 Port

OTHER FEATURES

· Overlaid Graphical On-Screen Display (OSD) and GUI Navigation via HDMI

· Audyssey Dynamic EQ® for Loudness Correction

· Audyssey Dynamic Volume® to Maintain Optimal Listening Level and Dynamic Range

· Dolby® Volume for Reference-Quality Listening at Any Volume

· Independent Crossover Adjustment for Each Channel (40/50/60/70/80/90/100/120/150/200 Hz)

· A/V Sync Control (Up to 800 ms in 5 ms Steps)

· Tone Control (Bass/Treble) for All Channels

· Light Dimming (Display: Normal/Dim/Dimmer; Volume Knob LED: On/Off)*

· RDS (PS/RT/PTY/TP)

· 40 FM/AM Random Presets

· Certified with Windows® 7 and DLNA Version 1.5

· RIHD (Remote Interactive over HDMI) for System Control

· Bi-Directional, Preprogrammed, and Customizable RI Remote Control with On-Screen Setup, Mode-Key LEDs, and Macro Presets for Four Activities
