Loa JBL Subwoofer Control 19CS

Model: Loa JBL Subwoofer Control 19CS

Hãng : JBL/Mỹ (Chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 7.900.000 vnđ

CONTROL 19-CS 8" In-Ceiling Subwoofer, 100W/200W 8ohms

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

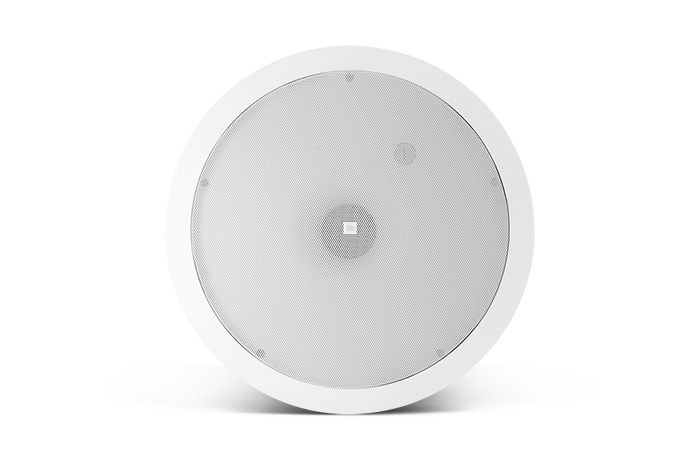

In-Ceiling Subwoofer

The Control 19CS uses advanced proprietary technologies to produce powerful bass from a low profile
in-ceiling design.

FEATURES

∧

Unique Nested Chamber™ design and Linear Dynamic Aperture™ port design delivers high output from a compact enclosure.
JBL’s exclusive SonicGuard™ overload protection allows higher operational levels and improved
system reliability.
Component: Long excursion 200 mm (8 in) driver.
Packaged with grille, backcan and tile rails for fast installation and easy stocking.
Simple installation and wire connection method.

SPECIFICATIONS

	Frequency Range	42 Hz - 200 Hz
	Power Capacity	200 W Continuous Program Power
	Nominal Sensitivity	95 dB SPL, 1W @ 1 m (3.3 ft) in ceiling near corner (π/2) 89 dB SPL, 1W @ 1 m (3.3 ft) in center of ceiling (2π)
	Nominal Coverage Angle	180° conical coverage
	Rated Maximum SPL	115 dB @ 1 m (3.3 ft) in ceiling near corner (π/2)
	Nominal Impedance	8 ohms
	Low Frequency	200 mm (8.0 in) Polypropelene cone. 38 mm (1.5 in) coil on aluminum former
	Enclosure Material	Backcan: Formed steel Baffle/Rim: Medium impact polystyrene, fire rated UL94V-0
	Overload Protection	Full-range power limiting to protect network and transducers. (On Control 19CS, not on Control 19CST)
	Terminations	Removable locking connector with screw-down terminals. 2 input terminals and 2 loop-thru output terminals. Max. wire size 12 AWG (2.5 mm2)
	Safety Agency Rating	In accordance with IEC60849 / EN60849. Suitable for use in air handling spaces, per U.L.-2043, U.L.-1480, NFPA90, NFPA70A.
	Outside Dimensions (H x Dia)	345 x 345 mm (13.6 x 13.6 in) 318 mm (12.5 in) front of ceiling tile to back of backcan
	Cutout Size (H x W)	305 mm (12.0 in)
	Net Weight (ea)	5.5 kg (12 lb
	Shipping Weight (pair)	Control 19CS: T12.7 kg (28 lb) Control 19CST: 14.3 kg (32 lb)
	Included Accessories	C-shaped support backing plate 2 tile support rails (fits both 2 x 4 ft or 600 x 1200 mm tiles) Cutout template Paint shield Removable locking wiring connector
