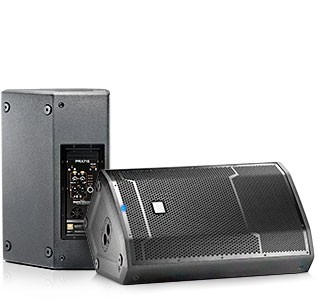

Loa JBL PRX 715

Model: Loa JBL PRX 715

Hãng: JBL/Mỹ (Chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Mexico

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 32.980.000 vnđ

PRX715
15" Two-Way Full-Range Main System/Floor Monitor

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

15" Two-Way Full-Range Main System/Floor Monitor

The 2-way 15" is the most recognizable form of portable PA loudspeakers and offers the perfect balance between size and performance. The PRX715 truly is an exception; it’s small, light weight, versatile and powerful.

FEATURES

∧

136 dB peak SPL
15" Differential Drive® low-frequency driver for low-distortion and higher SPL
1.5" diameter next generation JBL neodymium compression driver
JBL designed waveguide for accurate coverage
Efficient Class-D amplifier technology
Optimized EQ for monitor or front-of-house applications
DSP input section, crossover, dynamic limiting, component optimization, selectable system EQ
Line level and direct microphone input capability
Professional XLR-1/4" combination inputs, RCA inputs, and XLR loop-through
Multi-angle enclosure for main PA or floor monitor applications
Integrated 36 mm pole mount socket with angle down tilt
Injection molded handle with backing cup for easy transport
Integrated M10 suspension points for easy setup
Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish.
Cloth backed, dent-resistant 16 gauge steel grilles

THÔNG SỐ PRX 715

Power Rating

1500 W

Frequency Range (-10 dB)

Main: 42.9 Hz - 19.5 kHz Monitor: 43.6 Hz - 19.3 kHz

Frequency Response (±3 dB)

Main: 58.1 Hz - 17.2 kHz Monitor: 60.7 Hz - 16.7 kHz

Coverage Pattern

90° x 50° nominal

Directivity Index (DI)

10.2 dB

Directivity Factor (Q)

10.4

Crossover Frequency

1.7 kHz

Maximum SPL

Normal: 136 dB Boost: 136 dB

Signal indicators

Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting Signal: Green LED indicates signal present Power/Standby : Blue indicates system has power and ready to pass audio, Red indicates system has power but is in a power saving mode and will not pass audio.

Dynamic Control (Input)

dbx Type IV™ limiter circuit

Input Impedance

20K Ohms (balanced), 10K Ohms (unbalanced)

LF Driver

1 x JBL 275G (15 in) woofer

HF Driver

1 x JBL 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver

Enclosure

Asymmetrical, 18 mm, plywood

Suspension / Mounting

Dual 36 mm pole socket, 12 x M10 Suspension Points
