Loa JBL JRX 215
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02
- Thông tin sản phẩm
- Thông số kỹ thuật

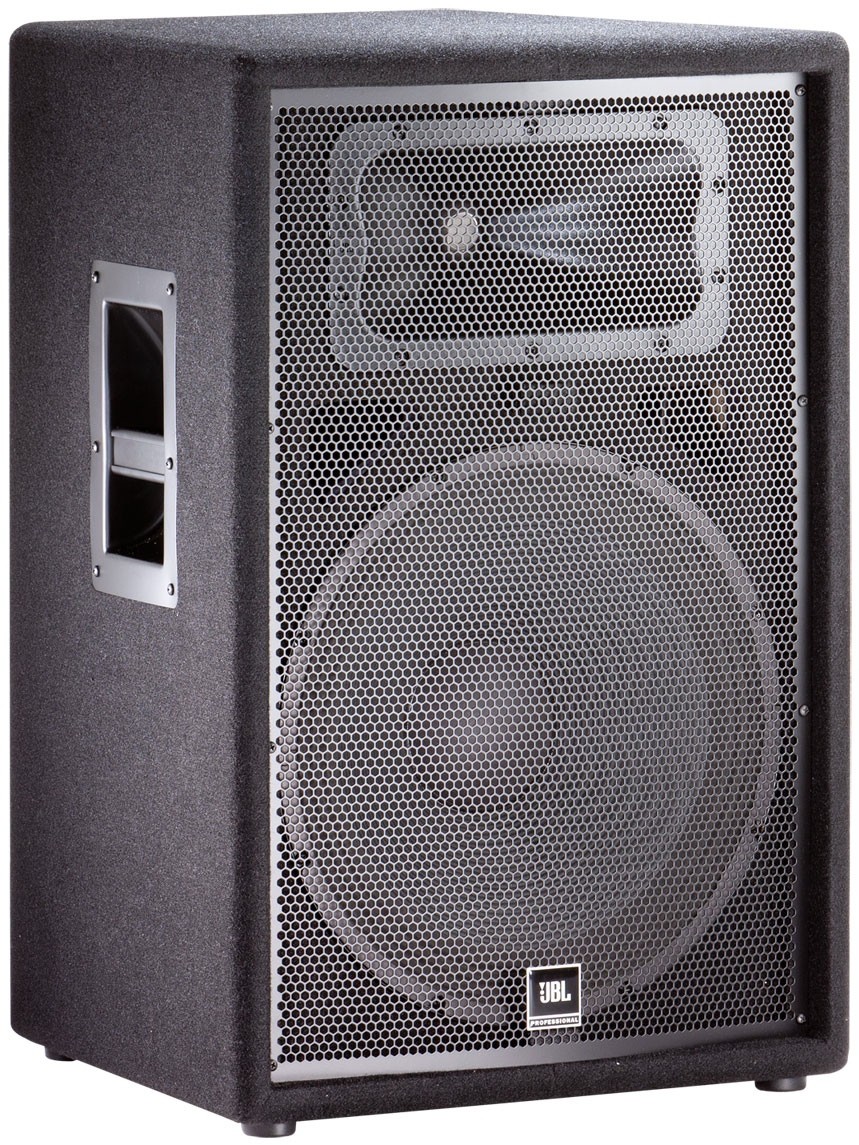

JBL JRX215 2-way Passive PA Speaker
The JBL JRX215 2-way passive PA speaker gives you professional performance affordably. JBL engineers reexamined every element of the speaker system design, kept everything that makes a speaker perform and sound its best, and redesigned things that don't. For increased efficiency and power handling, the JRX215 sports a 15" low-frequency driver with a 2.5"-diameter edgewound ribbon voice coil that delivers more cross-sectional wire area in its voice coil gap than round-wire designs, while a 1" polymer-diaphragm compression driver maximizes high-frequency performance and system reliability. Need PA speakers? Go pro with JBL's JRX215.
JBL JRX215 2-way Passive PA Speaker Features at a Glance:
15" low-frequency driver with a 2.5"-diameter edgewound ribbon voice coil
1" polymer-diaphragm compression driver
Progressive Transition high-frequency waveguide provides superior coverage control
Advanced network topology crossover design shapes frequency response
High-voltage capacitors and inductors with massive cores and heavy-gauge wire
Rugged, acoustically superior enclosure is constructed from 3/4" MDF
Attractive 18-gauge hexagon perforated, steel grille protects components
Dual-angle pole-mount socket lets speaker tilt for more uniform audience coverage
SPECIFICATION
| Specification | Detail |
| Powered | No |
| Power Configuration | Not powered |
| LF Driver Size | 15" |
| HF Driver Size | 1" |
| Power Amp | Not powered |
| Power Rating (Program) | 250W |
| Peak Power Capacity | 1000W |
| Impedance | 8 ohms |
| Frequency Range | 38Hz-16khz (-10dB), 50Hz-12.5kHz (±3dB) |
| Crossover Frequency | 1.6kHz |
| Maximum Peak SPL | 128 dB |
| Horizontal Coverage Angle | 50 Degrees |
| Vertical Coverage Angle | 90 Degrees |
| Enclosure Material | 3/4" MDF |
| Mounting Options | Pole, Floor |
| Inputs | 1 x 1/4" in parallel with 1 x speakon |
| Outputs | 1 x 1/4" in parallel with 1 x speakon |
| Height | 27.5" |
| Width | 18.1" |
| Depth | 17" |
| Weight | 61 lbs. |
| Manufacturer Part Number | JRX215 |
