Loa JBL CSS-1S/T

Model: Loa JBL CSS-1S/T

Hãng: JBL/Mỹ (Chính Hãng)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 4.700.000 vnđ

5.25" Full-range, Surface Mount LoudSpeakers, 60W 8-ohms, 10W, 5W, 2.5W @ 100V/70V

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

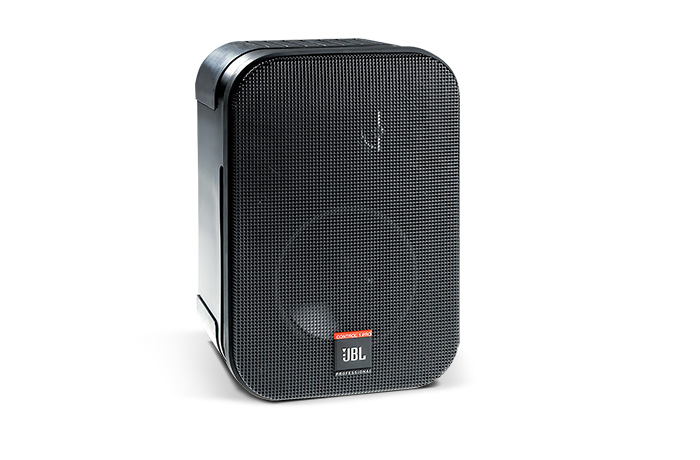

Compact Two-Way 100V/70V/8-Ohm Loudspeaker

CSS-1S/T is a versatile, compact two-way loudspeaker designed for use on 100V or 70V distributed speaker lines, or in 8 ohm direct mode. The 135 mm (5.25 inch) low frequency loudspeaker and 19 mm (.75 inch) polycarbonate dome tweeter reproduce full-range sound quality for foreground or background music and are voiced for maximum speech clarity and intelligibility.

FEATURES

∧

10 Watt Multi-Tap Transformer for 100V or 70V Distributed Speaker Lines
8 Ohm Direct Setting
Included Wall-Mounting Bracket
Professional Drivers and Network

	Frequency Range (-10 dB)	85 Hz – 18 kHz
	Frequency Response (±3 dB)	120 Hz – 16 kHz
	Power Capacity	60 Watts
	Sensitivity	86 dB SPL, 1W (2.83V) at 1m (3.3 ft)
	Maximum SPL	106 dB at 8 Ohm Direct setting; 96 dB at 10W setting
	Nominal Coverage	120ºH x 120ºV
	Directivity Factor (Q)	6.2
	Directivity Index (DI)	7.9 dB
	Nominal Impedance	8 ohms (in 8Ω DIRECT mode, selectable on back panel)
	Transformer Taps	10 W, 5 W (& 2.5W @ 70V)
	Crossover Frequency	4.3 kHz
	Transducers
	LF Driver	135 mm (5.25 in) low frequency driver
	HF Driver	19 mm (0.75 in) polycarbonate dome tweeter
	Input Connectors	Spring-loaded terminals
	Enclosure
	Enclosure Material	Polypropylene Structural Foam
	Color	Black
	Dimensions	229 mm x 159 mm x 143 mm (9.0 in x 6.3 in x 5.6 in)
	Net Weight (each)	2.0 kg (4.5 lb)
	Shipping Weight (pair)	4.8 kg (10.5 lb)
	Included Accessories	Wall-mounting bracket assembly
