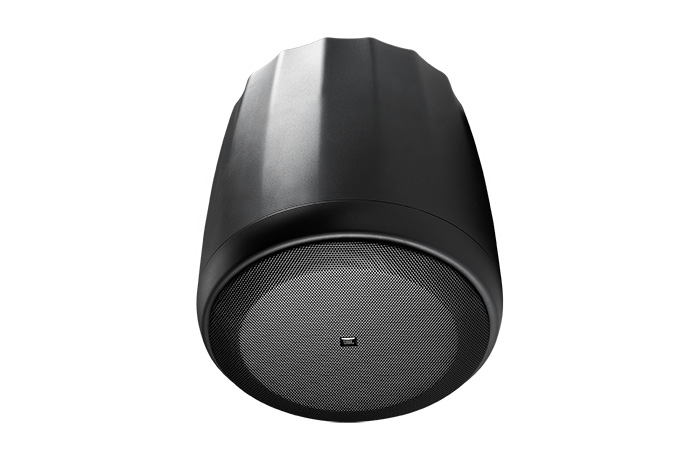

Loa JBL Control 67HC/T

Model: Loa JBL Control 67HC/T

Hãng: JBL/Mỹ (Chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 13.900.000 vnđ

CONTROL 67HC/T Narrow-Coverage, High Ceiling Pendant Loudspeaker, 75° 6.5" 75W/300W 8-ohms, 60W, 30W, 15W, 7.5W 70V/100V 118dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

Narrow 75° Coverage High Ceiling Pendant Speaker

Control 67HC’s well-controlled narrow coverage is ideal for improved voice intelligibility and musical clarity in high-ceiling venues or in rooms with difficult acoustics, such as convention centers, transit centers, exhibit venues and hotel atrium areas.

FEATURES

∧

RBI Radiation Boundary Integrator Technology
Well-controlled 75° coverage for excellent clarity in high-ceiling and reverberant locations
6.5" (165 mm) low-frequency with silk-dome tweeter for outstanding sonic fidelity
High 93 dB sensitivity
75 Watts, 8 ohms and 60W multi-tap transformer
Black or white

SPECIFICATIONS

	Frequency Response (-10 dB)	75 Hz – 17 kHz
	Frequency Range (±3 dB)	110 Hz – 16 kHz
	Power Capacity	75 Watts Continuous Pink Noise Power (with 300 Watts peaks) 150 Watts Continuous Program Power
	Nominal Sensitivity	93 dB
	Nominal Coverage Angle	75° (+15°/-20°)
	Directivity (Q)	10.4
	Directivity Index (DI)	9.8 dB
	Rated Maximum SPL @ 1m	112 dB continuous pink noise, 118 dB peak
	Rated Impedance	8 ohms
	Transformer Taps	70V: 60W, 30W, 15W & 7.5W 100V: 60W, 30W, 15W
	Transformer Insertion Loss	0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
	LF Driver	165 mm (6.5 in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
	HF Driver	25 mm (1.0 in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
	Enclosure Material	High impact polystyrene
	Grille	Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
	Environmental	Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
	Termination	Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
	Suspension	Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
	Safety Agency Ratings	Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
	Dimensions	333 mm (13.1 in) diameter x 344 mm (13.6 in) height to top of cabinet. 369 mm (14.5 in) to top of suspension bracket.
	Net Weight (ea)	5.9 kg (13 lbs)
	Shipping Weight (pair)	14.1 kg (31 lbs)
	Included Accessories	Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
	Optional Accessories	MTC-PC60HC top panel / terminal cover
	Colors	Available in black or white (-WH). Paintable.
