Loa JBL Control 65PT

Model: Loa JBL Control 65PT

Hãng: JBL/Mỹ (Chính Hãng)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 7.940.000 vnđ

CONTROL 65PT

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

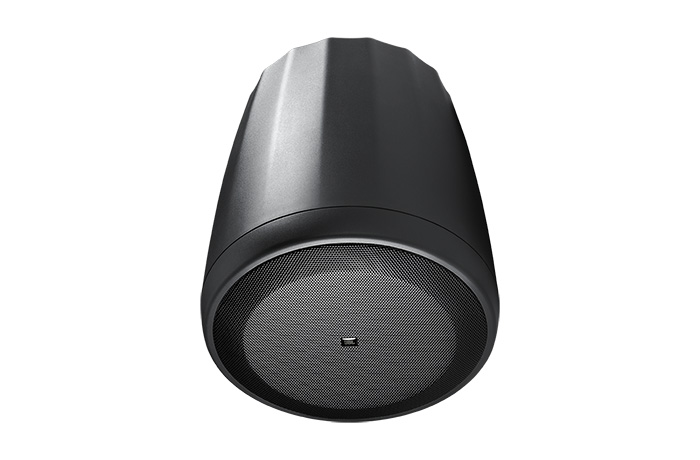

Compact Full-Range Pendant Speaker

Control 65P/T incorporates JBL’s exclusive RBI Radiation Boundary Integration technology to provide very consistent, wide coverage throughout the listening space.

FEATURES

∧

RBI Radiation Boundary Integrator Technology
120° conical coverage
5.25" (130 mm) low-frequency with silk-dome tweeter for high-fidelity sound quality
75 Watts, 8 ohms and 60W multi-tap transformer
Black or white

SPECIFICATIONS

	Frequency Response (-10 dB)	55 Hz – 20 kHz
	Frequency Range (±3 dB)	78 Hz – 18 kHz
	Power Capacity	75 Watts Continuous Pink Noise Power (with 300 Watts peaks) 150 Watts Continuous Program Power
	Nominal Sensitivity	86 dB
	Nominal Coverage Angle	120° (+20°/-10°)
	Directivity (Q)	5.3
	Directivity Index (DI)	7.2 dB
	Rated Maximum SPL @ 1m	105 dB continuous pink noise, 111 dB peak
	Rated Impedance	8 ohms
	Transformer Taps	70V: 60W, 30W, 15W & 7.5W 100V: 60W, 30W, 15W
	Transformer Insertion Loss	0.5 dB @ 7.5 W, 0.5 dB @ 15 W, 0.6 dB @ 30 W, 0.7 dB @ 60 W
	LF Driver	130 mm (5¼ in) polypropylene-coated paper with pure butyl rubber surround, 25 mm (1 in) copper voice coil, vented fiberglass resin voice coil-former
	HF Driver	20 mm (¾ in) textile soft-dome, neodymium magnet assembly, ferro-fluid cooling, aluminum voice coil former
	Enclosure Material	High impact polystyrene
	Grille	Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
	Environmental	Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
	Termination	Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
	Suspension	Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
	Safety Agency Ratings	Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
	Dimensions	234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.
	Net Weight (ea)	3.7 kg (8 lbs)
	Shipping Weight (pair)	8.7 kg (19 lbs)
	Included Accessories	Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors
	Optional Accessories	MTC-PC60 top panel / terminal cover
	Colors	Available in black or white (-WH). Paintable.
