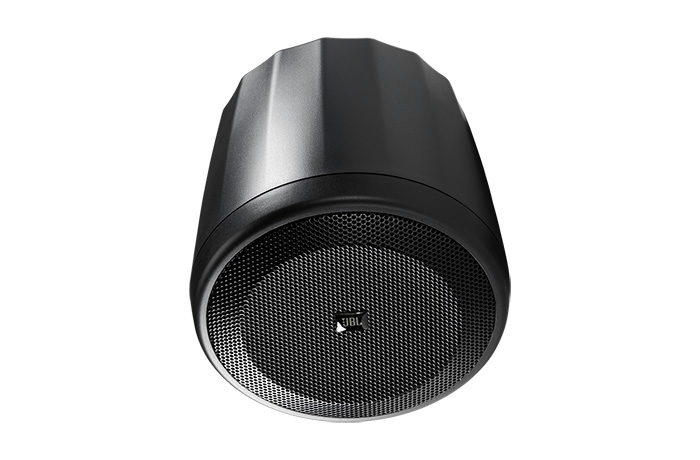

Loa JBL Control 62P

Model: Loa JBL Control 62P

Hãng: JBL/Mỹ (Chính Hãng)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu cuẩn Hãng SX

Giá bán: 3.500.000 vnđ

CONTROL 62P Ultra-Compact, Mid-High Satellite Pendant Speaker, 140° 2.5" 15W/60W 16-ohms 103dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

Ultra-Compact Mid-High Satellite Pendant Speaker

Ideal for visually sensitive applications, Control 62 P’s 2" driver is great for speech and mid-high music applications (external high-pass required). For full-range, wide bandwidth performance, up to 4 pieces can be driven from a Control 50 S/T or 40 CS/T subwoofer.

FEATURES

∧

2" (50 mm) driver
20 Watts, 16 ohms
Can intermix with Control 52 surface-mount and Control 42C in-ceiling satellite speakers
Black or white

SPECIFICATIONS

	Frequency Response (-10 dB)	150 Hz – 20 kHz
	Frequency Range (±3 dB)	200 Hz – 17 kHz
	Power Capacity	50 Watts Continuous Program Power (2 hrs) 25 Watts Continuous Pink Noise (2 hrs) 30 Watts Continuous Program Power (100 hrs) 15 Watts Continuous Pink Noise (100 hrs)
	Nominal Sensitivity	87 dB (4.0 V, 1 W) 84 dB (2.83 V)
	Nominal Coverage Angle	140° (+25°/-50°)
	Directivity (Q)	4.7
	Directivity Index (DI)	6.2 dB
	Rated Maximum SPL @ 1m	97 dB continuous pink noise, 103 dB peak
	Rated Impedance	16 ohms (no transformer taps)
	Recommended High-Pass Frequency	150 Hz
	Transducer: Driver	60 mm (2.5 in), polypropylene-coated paper with pure butyl rubber surround, 20 mm (¾ in) copper clad aluminum voice coil with vented Nomex® coil-former.
	Enclosure Material	High impact polystyrene
	Grille	Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
	Environmental	Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splashproof rating.
	Termination	Two removable locking euro-block 2-pin connectors with screwdown terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
	Suspension	Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
	Safety Agency Ratings	Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
	Dimensions	128 mm (5.1 in) diameter x 121 mm (4.8 in) height to top of cabinet. 141 mm (5.6 in) to top of suspension bracket.
	Net Weight (ea)	0.7 kg (1.5 lbs)
	Shipping Weight (pair)	2.0 kg (4.3 lbs)
	Included Accessories	Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
	Optional Accessories	MTC-PC62 top panel / terminal cover
	Colors	Available in black or white (-WH). Paintable.
