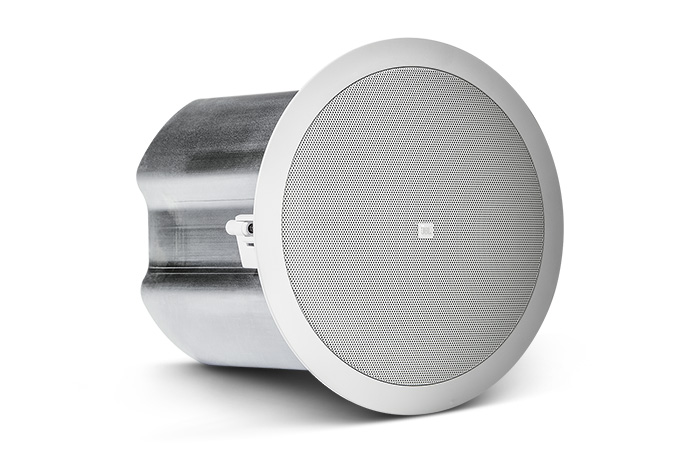

Loa JBL Control 14C/T

Model: Loa JBL Control 14C/T

Hãng: JBL/Mỹ (chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 4.300.000 vnđ

Control 14C/T 4" Ceiling Loudspeaker, 30W/60W @ 8ohms, 25 W, 12.5 W, 6.3 W, 3.2 W @ 70V/100V

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

Two-Way 4" Coaxial Ceiling Loudspeaker

Control 14C/T is a full-range ceiling speaker consisting of a 100 mm (4 inch) high tech cone driver and a 19 mm soft-dome liquid cooled tweeter mounted in a vented, paintable baffle made of UV resistant UL94-V0 and UL94-5HB material, with a pre-attached blind-mount backcan for quick and easy installation.

FEATURES

∧

Components:
• 100 mm (4.0 in) high output driver with polypropylene coneand butyl rubber surround
• 19 mm (0.75 in) soft-dome liquid-cooled tweeter
Blind-mount backcan for quick and easy install
Dual conduit/cable clamps
Combined 70V/100V and low impedance direct operation
• 30 Watts at 8Ω nominal setting
• 25W multi-tap at 70V/100V
74 Hz – 20 kHz bandwidth with wide 120° coverage
White or black (-BK)

SPECIFICATIONS

	Frequency Range (-10 dB)	74 Hz – 20 kHz
	Power Capacity (at low-Z)	60 Watts Continuous Program Power 30 Watts Continuous Pink Noise
	Transformer Taps	25 W, 12.5 W, 6.3 W @ 70V or 100V (plus 3.2 W @ 70V only)
	Frequency Response (±3 dB)	100 Hz – 20 kHz
	Nominal Sensitivity	87 dB
	Nominal Coverage Angle	120° conical coverage
	Directivity Factor (Q)	7.6
	Directivity Index (DI)	8.1 dB
	Rated Maximum SPL	102 dB @ 1 m (3.3 ft) average, 108 dB peak
	Nominal Impedance	8 ohms (in direct/bypass 8Ω setting)
	Crossover Network	12 dB/oct (2nd order) low-pass to LF driver, 12 dB/oct (2nd order) high-pass to HF driver
	LF Driver	100 mm (4.0 inch) with polypropylene cone, butyl rubber surround, anodized aluminum voice coil former, high temperature voice coil
	HF Driver	19 mm (3/4 in), highly-damped treated-silk dome, Kapton™ voice coil, liquid cooling, wide dispersion waveguide
	Input Connector	Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
	Connector Wiring	Pin 1 = + In; Pin 2 = - In; Pin 3 = + Loop Thru; Pin 4 = - Loop Thru
	Strain Reliefs	Strain relief for two cables or two flex conduits via coupled clamping mechanism
	Materials	ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
	Safety Agency	UL1480, UL2043, NFPA90 & NFPA70; S7232/UL Listed, Suitable for use in air handling spaces, Signaling Speaker; Transformer UL registered per UL1876; ROHS, C-tick N108, CE compliant; Baffle meets UL94-V0 and UL94-5VB flammability rating; In accordance with IEC60849/EN60849 systems
	Dimensions	196 mm diameter x 181 mm depth from back of baffle (7.7 in diameter x 7.1 in depth)
	Ceiling Cutout Size	Circular cutout with 170 mm (6.7 in) diameter (cardboard cutout template included)
	Ceiling Thickness Range	Up to 35 mm (1.4 in) with stock dog-ears. MTC-TCD thick-ceiling dog-ears available for up to 55 mm (2.2 in) ceiling thicknesses
	Safety Seismic Attachment	One point, top surface
	Net Weight	2.2 kg (4.8 lbs, one speaker)
