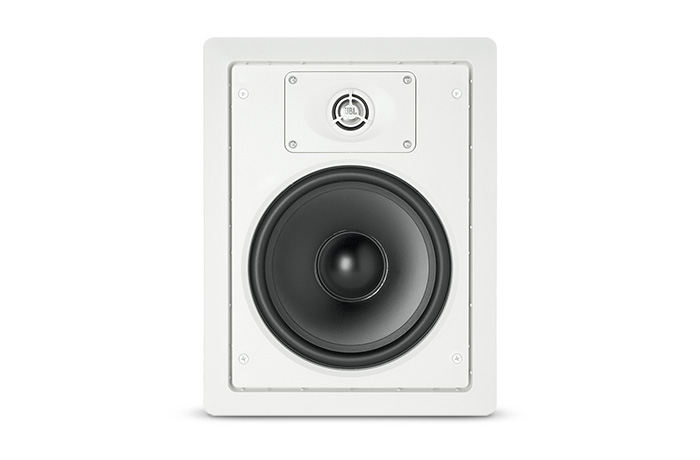

Loa JBL Control 128WT

Model: Loa JBL Control 128WT

Hãng: JBL/Mỹ (Chính Hãng)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 7.890.000 vnđ

CONTROL 128WT 8" Two-Way, In-Wall Speaker, 30W, 15W, 7.5W, 3.7W @ 70V/100V

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

Premium In-Wall Loudspeaker

The Control 128WT is a premium in-wall speaker within the JBL Professional Control® Contractor line designed for applications such as foreground music, boardrooms, reception areas, airports, convention centers, cruise ships, retail outlets, restaurants, museums, surround locations, or any critical listening application where top performance from a loudspeaker with minimal visual impact is required.

FEATURES

∧

Components:
200 mm (8 in) polymer-coated aluminum-cone woofer with pure butyl rubber surround.
25 mm (1 in) pure-titanium dome low-diffraction swivel aimable titanium tweeter.
High-slope crossover for natural midrange sound.
Extended bandwidth performance of 30 Hz – 20 kHz.
60 W continuous (120 W program, 240 W peak) power handling (128 W).

	Frequency Range	38 Hz - 20 kHz (-10 dB)
	Power Capacity	200 W Peak 100 W Continuous Program Power 50W Continuous Pink Noise
	Transformer Taps	70 V: 50 W, 25 W, 12 W & 6 W 100 V: 50 W, 25 W, & 12 W
	Nominal Impedance	8 ohms
	Low Frequency	200 mm (8 in) polymer-coated aluminum cone, pure butyl rubber surround.
	High-Frequency	25 mm (1 in) pure-titanium dome with cloth suspension on low-diffraction swivel-mount with -10 degree aimability.
	Terminations	Screw-down Euroblock-type connector. Max wire size 14 AWG (1.5 mm)2
	Crossover Network	2nd order Low Pass to the woofer and 2nd order High Pass to the tweeter.
	Optimum Air Cavity Behind Speaker	40 to 80 liters (1.4 to 2.8 cu ft)
	Outside Dimensions (H x W x D)	334 x 257 x 110 mm (13.1 x 10.1 x 4.3 in), 102 mm (4.0 in) front of wall to back of speaker.
	Maximum Wall Thickness	32 mm (1.25 in)
	Cutout Size (H x W)	300 x 225 mm (11.9 x 8.9 in) Cutout template included.
	Net Weight (ea)	3.3 kg (7.2 lb)
	Shipping Weight (ea)	7.8 kg (17.2 lb)
	Included Accessories	Cutout template & paint shield
	Optional Accessories	MTC-128RIF Rough-In Frame for new construction installation to wallstuds.
