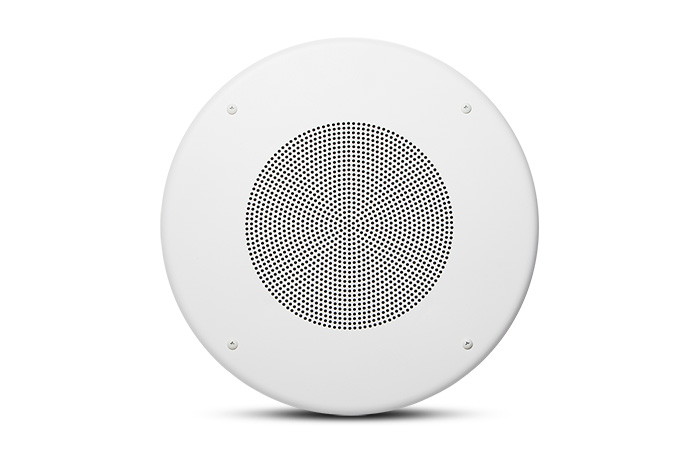

Loa JBL ceiling CSS 8008

Model: Loa JBL ceiling CSS 8008

Hãng: JBL/Mỹ (Chính Hãng)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 900.000 vnđ

8" Full-range, In-Ceiling Loudspeaker, 15W 8-ohms, 5W, 2.5W, 1.3W, 0.7W @ 100V/70V

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

200 mm (8 in) Commercial Series Ceiling Speakers

JBL’s Commercial Series Ceiling Speakers provide excellent performance for paging and background music applications. High sensitivity across the product line provides maximum sound level, even at low tap settings.

FEATURES

∧

High 96 dB sensitivity
5 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
120° conical coverage
Fits CSS-BB8 backcan

SPECIFICATIONS

	Driver Size (dual-cone)	200 mm (8 in)
	Driver Sensitivity (mid-range) (1W [2.83V], 1m, 2k – 6k Hz)	96 dB
	Frequency Range (-10 dB) Driver/Grille Assembly	55 Hz – 16 kHz
	Installed in CSS-BB backcan	100 Hz – 16 kHz
	Coverage (2 kHz)	120°
	Driver Continuous Power Handling	15 Watts
	100V Taps	5W, 2.5W, 1.3W
	70V Taps	5W, 2.5W, 1.3W, 0.7W
	25V Taps	5W, 2.5W, 1.3W, 0.7W
	Transformer Insertion Loss	1.5 dB Maximum
	Transformer Connection	Bare wire
	Motor Mass	200 g (7 oz)
	Safety Agency	Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
	Matching CSS Backcan	CSS-BB8 (0.15 cu ft)
	Other Compatible Backcans	MTC-81BB8 (0.26 cu ft) MTC-200BB6 (0.5 cu ft) MTC-300BB8 (1.0 cu ft)
	Bolt Mounting Circle to Backcan	4 points on 286 mm (11.25 in) diameter
	Cutout Diameter Open-back	216 mm (8.5 in)
	In CSS-BB backcan	295 mm (11.7in)
	Depth (behind grille)	71 mm (2.8 in)
	Grille Diameter	327 mm (12.9 in)
	Net Weight (ea)	1.27 kg (2.8 lb)
	Shipping Weight (ea)	1.94 kg (4.3 lb)
	Included Accessories	4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan.
