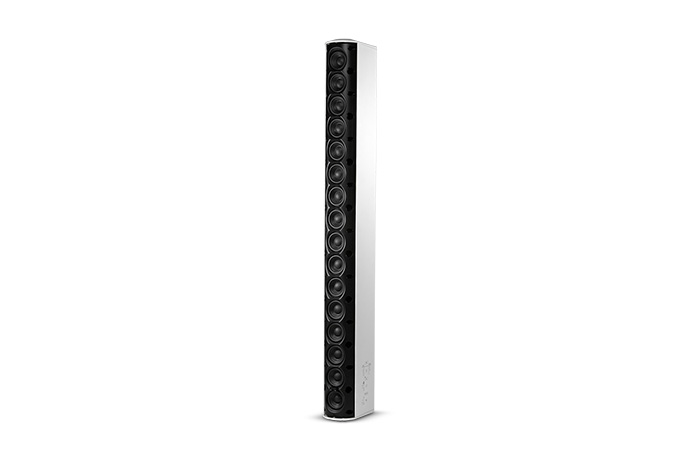

Loa JBL CBT 100LA-1

Model: Loa JBL CBT 100LA-1

Hãng: JBL/Mỹ (Chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ : Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 30.900.000 vnđ

Pattern Control Full-Range Speaker System, 16 x 2" 200W/800W 8-ohms, 120W, 60W, 30W, 15W 70V/100V 127dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

Constant Beamwidth Technology™ Line Array Column Loudspeaker with Sixteen 50 mm (2 in) Drivers. With improved mounting bracket for enhanced aiming flexibility.

The CBT 100LA-1, with Constant Beamwidth Technology™, represents a breakthrough in pattern control consistency, utilizing complex analog delay beam-forming and amplitude tapering to accomplish superior, consistent vertical coverage without the narrow vertical beaming and out-of-coverage lobing that are typical of straight form-factor column speakers.

FEATURES

∧

Patent-pending Constant Beamwidth Technology™ provides constant directivity up to the highest frequencies and reduces out-of-coverage lobing.
Vertical pattern coverage switchable between 40° for medium-throw coverage and 15° for
long-throw applications.
Switchable voicing provides flat response in music mode or mid-range presence peak in speech mode.
Dynamic SonicGuard™ overload protection
Swivel (pan)/tilt wall bracket included.
Built-in 70V/100V transformer, plus 8 ohm direct capability.

SPECIFICATIONS

	Components	Sixteen 50 mm (2 in) Full-Range
	Frequency Range (-10 dB)	80 Hz – 20 kHz
	Vertical Coverage	Vertical Narrow Mode: 15° (2 kHz - 16 kHz) (±10°) Broad Mode: 40° (1 kHz - 16 kHz) (±10°) Horizontal 150° (ave, 1 kHz – 4 kHz, ±20°)
	Sensitivity (2.83V@ 1m)	Narrow: (speech mode) 96 dB (2 kHz - 14 kHz ) (music mode) 93 dB (300 Hz - 18 kHz) Broad: (speech mode) 93 dB (2 kHz - 14 kHz) (music mode) 90 dB (300 Hz - 18 kHz)
	Nominal Impedance	8 ohms (in Thru mode)
	Power Capacity (8 ohm setting)	325 W (1300W peak), 2 hrs 200 W (800W peak), 100 hrs
	Max SPL	Narrow: (speech mode) 121 dB cont ave (127 peak) (music mode) 118 dB cont ave (124 peak) Broad: (speech mode) 118 dB cont ave (124 peak) (music mode) 115 dB cont ave (121 peak)
	70V/100V Transformer Taps	120W, 60W, 30W (15W at 70V only), and 8Ω thru, via switch
	Enclosure	Fiberglass reinforced ABS cabinet, painted aluminum grille
	Outdoor Capability	IP-55 rated, per IEC529, when installed with optional MTC-PC2 panel cover. UV, moisture and 200-hr ASTM G85 acid-air/salt-spray resistant.
	Colors	Black or White (-WH)
	Insert Points	18 M6 insert points on back panel.
	Mounting	Included swivel (pan)/tilt wall bracket provides continuously variable +/-80 degree left-right swivel aiming (at no up/down tilt -- see Bracket Guide for maximum swivel range at various up/down tilt angles), continuously adjustable ±15 degree tilt, as well as 5 degree fixed increment points. Eighteen threaded mounting points located on back panel conform to industry standard rectangular 108 x 51 mm (4.25 x 2.0 in) pattern for OmniMount® 30.0 and other compatible third-party brackets. Threaded mounting points can be utilized for suspension.
	Dimensions (H x W x D)	1000 x 98.5 x 153 (39.4 in x 3.8 in x 6.0 in)
	Net Weight	7.2 kg (15.8 lb)
	Included Accessories	Swivel (pan) / tilt wall bracket
