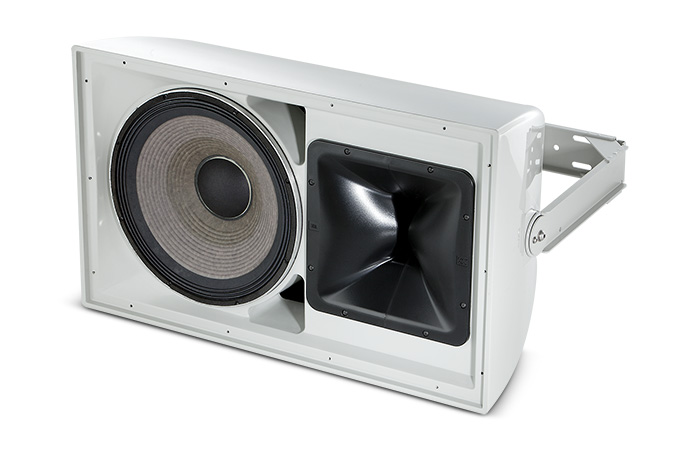

Loa JBL AW 526

Model: Loa JBL AW 526

Hãng: JBL/Mỹ (Chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 105.200.000 vnđ

AW 526 High Power 2-Way All Weather Loudspeaker with 1 x 15" LF, 600W/2400W 8-ohms 134dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

High Power 2-Way All Weather Loudspeaker with 1 x 15" LF

The AW526 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The AW526 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

FEATURES

∧

Weather-Resistant, All Fiberglass Enclosure
120° x 60° Coverage
2265H-1 Differential Driver® Low- Frequency Driver
2432H High Frequency Compression Driver
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable waveguide for vertical or horizontal orientation
Available in Gray and Black finish
400 W, 70/100V Transformer Included
U-type Mounting Bracket Included

SPECIFICATIONS

	Frequency Range (-10 dB)	35 Hz – 20 kHz
	Frequency Response (±3 dB)	55 Hz – 17 kHz
	Coverage Pattern	120° x 60°, rotatable waveguide
	Directivity Factor (Q)	7.9
	Directivity Index (DI)	9 dB
	Crossover Frequency	1.1 kHz
	Long-Term System Power Rating (IEC)	600 W (2400 W peak), 100 hrs
	Maximum SPL	128 dB-SPL cont avg (134 dB peak)
	System Sensitivity (1W @ 1m)	100 dB
	70V/100V Transformer Taps	70V: 400W, 200W, 100W 100V: 400W, 200W
	Low Frequency Driver	1 x JBL 2265H 380 mm (15 in.) Differential Drive® driver with 75 mm (3 in) dual voice coil
	LFD Nominal Impedance	8 ohms
	LFD Sensitivity (1W @ 1m, within operational band)	98 dB SPL
	High Frequency Driver	JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
	HFD Nominal Impedance	8 ohms
	HFD Sensitivity (1W @ 1m)	113 dB SPL
	Waveguide	PT-H126HF-1
	Enclosure	Hand-Laminated Fiberglass, gray gelcoat (black available)
	Suspension Attachment	2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.
	Grille	Three layer grille assemblies consisting of 14-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.
	Input Connector	CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.
	Environmental Specifications	IP56 per IEC 529
	Dimensions (H x W x D in horizontal cabinet orientation)	485 x 810 x 478 mm (19.1 x 31.9 x 18.8 in)
	Net Weight	28.3 kg (62.5 lb)
