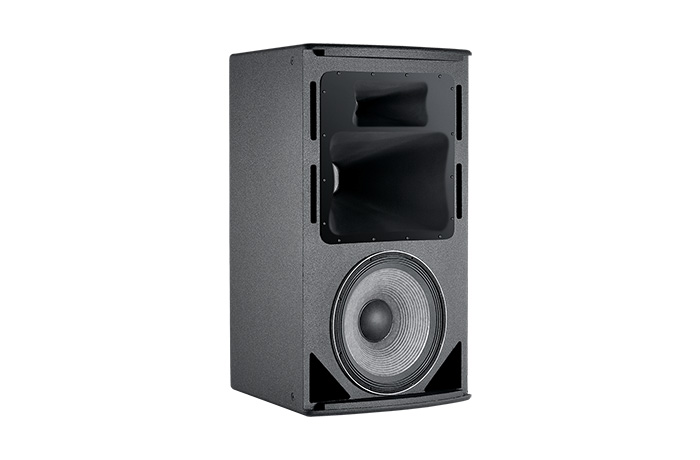

Loa JBL AM 7315/64/95

Model: Loa JBL AM 7315/64/95

Hãng: JBL/Mỹ (Chính hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Mexico

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 115.200.000 vnđ

AM7315/64/95 High-power 90° x 50°, 15" Three-way, 1000W/4000W 8-ohms 139dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

High Power 3-Way Loudspeaker

AM7315 speakers are high power 3-way full-range loudspeaker systems comprised of one 380 mm (15 in) Differential Drive® low frequency driver, one 200 mm (8 in) CMCD Cone Midrange Compression Driver, and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AM7315 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

FEATURES

∧

2265H Differential Drive® Low-Frequency Driver
CMCD™ Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.
2432H High-Frequency Compression Driver
PT™ Progressive Transition Waveguide for excellent pattern control with low distortion.
Bi-Amp/Tri-Amp Switchable.

SPECIFICATIONS

	Frequency Range (-10 dB)	38 Hz – 20 kHz
	Frequency Response (±3 dB)	45 Hz – 18 kHz
	Coverage Pattern	/64: 60° x 40°, rotatable waveguide /95: 90° x 50°, rotatable waveguide
	Directivity Index (DI)	13 dB
	Crossover Modes	Tri-amp/Bi-amp switchable
	Crossover Frequencies	300 Hz and 2.3 kHz
	Transducer Power Rating (AES)	LF: 1000 W (4000 W peak), 2 hrs 750 W (3000 W peak), 100 hrs MF: 350 W (1400 W peak), 2 hrs HF: 100 W (400 W peak), 2 hrs
	Long-Term System Power Rating (IEC)	LF: 600 W (2400 W peak), 100 hrs MF/HF: 200 W (800 W peak), 100 hrs
	Maximum SPL	LF: 127 dB-SPL cont avg (133 dB peak) Tri-amp mode: MF: 133 dB-SPL cont avg (139 dB peak) HF: 135 dB-SPL cont avg (141 dB peak) Bi-amp mode: MF/HF: 133 dB-SPL cont avg (139 dB peak)
	System Sensitivity of Passive Sections (1W @ 1m)	MF/HF Section in Bi-amp mode: 108 dB SPL
	Nominal Impedance System Sensitivity	8 ohms
	Low Frequency Driver	1 x JBL 2265H 380 mm (15 in ) Differential Drive® driver with 75 mm (3 in)
	Sensitivity (1W @ 1m) (Low Frequency)	97 dB SPL
	Midrange Driver	JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive® dual voice coil internal driver
	Sensitivity (1W @ 1m) (Midrange)	108 dB SPL
	High Frequency Driver	JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
	Sensitivity (1W @ 1m) (High Frequency)	115 dB SPL
	Enclosure	Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
	Suspension Attachment	13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
	Finish	Black DuraFlex™ finish. White available upon request.
	Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
	Input Connector	NL8 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop through.
	Environmental Specifications	Mil-Std 810; IP-x3 per IEC529.
	Dimensions (H x W x D in vertical cabinet orientation)	967 x 561 x 657 mm (38.1 x 22.1 x 25.9 in)
	Net Weight	45.8 kg (101 lb)
	Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
