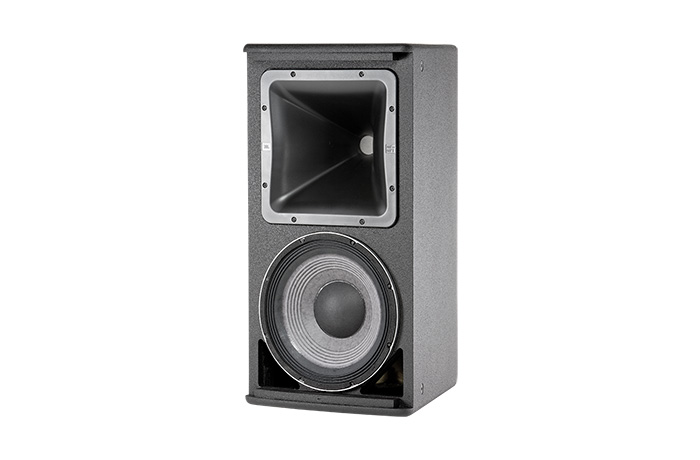

Loa JBL AM 7215

Model: Loa JBL AM 7215

Hãng: JBL/Mỹ (Chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Mexico

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 81.900.000 vnđ

AM 7215/64/66/95/26 High-power 15" Two-way, 1000W/4000W 8-ohms 135dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

High Power 2-Way Loudspeaker with 1 x 15" LF & Rotatable Horn

The AM7215 speakers are high power, lightweight, 2-way, full-range loudspeaker systems comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

FEATURES

∧

2265H Differential Drive® Low- Frequency Driver
2432H High-Frequency Compression Driver
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable waveguide for vertical or horizontal orientation
Bi-Amp/Passive Switchable
Available in Black, White and WRC/WRX finishes

	Frequency Range ( –10 dB)	34 Hz - 20 kHz
	Frequency Response ( ± 3 dB)	40 Hz - 18 kHz
	Coverage	/64: 60° x 40° /66: 60° x 60° /95: 90° x 50° /26: 120° x 60°
	LF Driver	2265H
	HF Driver	2432H
	System Type	15" Two - Way, High Power, Full - Range
	Dimensions (H x W x D)	781 x 420 x 503 mm (30.8 x 16.5 x 19.8 in)
	Weight	27.2 kg (60 lb)
	Crossover Modes	Bi-amp/Passive switchable
	Passive Crossover Frequency	1.8 kHz
	Transducer Power Rating (AES)	LF: 1000 W (4000 W peak), 2 hr 750 W (3000 W peak), 100 hrs HF: 100 W (400 W peak), 2 hrs
	Long-Term System Power Rating (IEC)	Passive mode: 600 W (2400 W peak), 100 hrs
	Maximum SPL (dB-SPL, 1W @ 1m)	Bi-amp mode: LF: 128 dB-SPL cont avg (134 dB peak) HF: 135 dB-SPL cont avg (141 dB peak) Passive mode: 124 dB-SPL cont avg (130 dB peak)
	System Sensitivity (1W @ 1m)	Passive mode: 96 dB SPL
	Nominal Impedance	8 ohms
