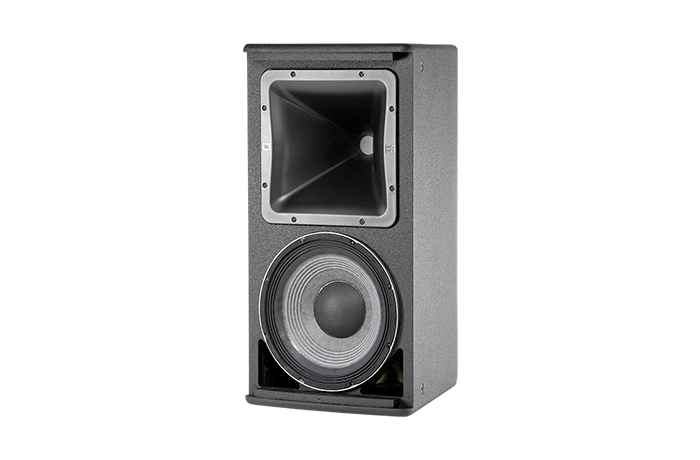

Loa JBL AM 7212

Model: Loa JBL AM 7212

Hãng: JBL/Mỹ (Chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Mexico

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 58.500.000 vnđ

AM7212/64/66/95/00/26 High-power 12" Two-way, 1000W/4000W 8-ohms 135dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

High Power 2-Way Loudspeaker with 1 x 12" LF & Rotatable Horn

The AM7212/64 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2262H 300 mm (12 in) low frequency driver and 2432H high-frequency 38mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

FEATURES

∧

2262H Differential Drive® Low- Frequency Driver
2432H High-Frequency Compression Driver
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable waveguide for vertical or horizontal orientation
Bi-Amp/Passive Switchable
Available in Black, White and WRC/WRX finishes

	Frequency Range ( –10 dB)	36 Hz - 20 kHz
	Frequency Response ( ± 3 dB)	42 Hz - 18 kHz
	Coverage	/64: 60° x 40° /66: 60° x 60° /95: 90° x 50° /00: 100° x 100° /26: 120° x 60°
	LF Driver	2262H
	HF Driver	2432H
	System Type	12" Two - Way, High Power, Full - Range
	Dimensions (H x W x D)	711 x 369 x 458 mm (28 x 14.5 x 18 in)
	Weight	23.1 kg (51 lb)
	Crossover Modes	Bi-amp/Passive switchable
	Passive Crossover Frequency	1.8 kHz
	Transducer Power Rating (AES)	LF: 1000 W (4000 W peak), 2 hr 700 W (2800 W peak), 100 hrs HF: 100 W (400 W peak), 2 hrs
	Long-Term System Power Rating (IEC)	Passive mode: 600 W (2400 W peak), 100 hrs
	Maximum SPL (dB-SPL, 1W @ 1m)	Bi-amp mode: LF: 126 dB-SPL cont avg (132 dB peak) HF: 135 dB-SPL cont avg (141 dB peak) Passive mode: 123 dB-SPL cont avg (129 dB peak)
	System Sensitivity (1W @ 1m)	Passive mode: 95 dB SPL
	Nominal Impedance	8 ohms
