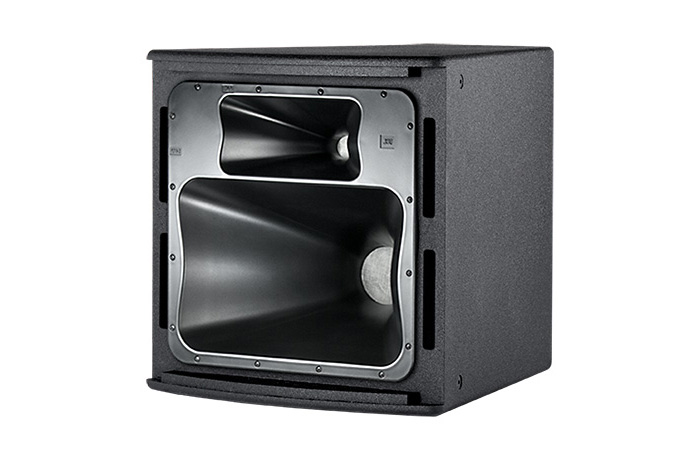

Loa JBL AM 7200/95

Model: Loa JBL AM 7200/95

Hãng: JBL/Mỹ (Chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Mexico

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 68.000.000 vnđ

AM 7200/64/95 High-power Mid-high 90° x 50° 8" 350W/1400W 8-ohms 139dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

High Power Mid-High Frequency

AM7200 speakers are high power mid-high frequency loudspeaker system comprised of one 200 mm (8 in) CMCD Cone Midrange Compression Driver and one 38 mm (1.5 in) exit/75 mm (3 in) voice-coil HF compression driver. The multi-band PT Progressive Transition mid-high frequency waveguide provides well-controlled coverage and is rotatable for cabinet positioning in either horizontal or vertical orientation. High-slope crossovers minimize band overlap and well-controlled off-axis response enhances arrayability. The cabinet is fitted with M10 threaded suspension points. Preengineered array bracketry is available. AM7200 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications.

FEATURES

∧

CMCD™ Cone Midrange Compression Driver provides low midrange distortion, increased sensitivity, extended bandwidth and improved phase coherency.
2432H High-Frequency Compression Driver
PT™ Progressive Transition Waveguide for excellent pattern control with low distortion.
Bi-Amp/Passive Switchable.

SPECIFICATIONS

	Frequency Range (-10 dB)	260 Hz – 20 kHz
	Frequency Response (±3 dB)	330 Hz – 18 kHz
	Coverage Pattern	/64: 60° x 40°, rotatable waveguide /95: 90° x 50°, rotatable waveguide
	Crossover Modes	Bi-amp/Passive switchable
	Crossover Frequency	2.3 kHz
	Transducer Power Rating (AES)	MF: 350 W (1400 W peak), 2 hrs HF: 100 W (400 W peak), 2 hrs
	Long-Term System Power Rating (IEC)	MF/HF: 200 W (800 W peak), 100 hrs
	Maximum SPL	Bi-amp mode: MF: 133 dB-SPL cont avg (139 dB peak) HF: 135 dB-SPL cont avg (141 dB peak) Passive mode: MF/HF: 133 dB-SPL cont avg (139 dB peak)
	System Sensitivity (1W @ 1m):	Passive mode: 108 dB SPL
	Nominal Impedance	8 ohms
	Midrange Driver	JBL CMCD-82H Cone Midrange Compression Driver with integral 200 mm (8 in) diameter Differential Drive® dual voice-coil internal driver
	Sensitivity (1W @ 1m) (Midrange)	108 dB SPL
	High Frequency Driver	JBL 2432H, 38 mm (1.5 in) exit compression driver, 75 mm (3 in) voice coil
	Sensitivity (1W @ 1m) (High Frequency)	115 dB SPL
	Enclosure	Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
	Suspension Attachment	13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
	Finish	Black DuraFlex™ finish. White available upon request.
	Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
	Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
	Environmental Specifications	Mil-Std 810; IP-x3 per IEC529.
	Dimensions (H x W x D in vertical cabinet orientation)	548 x 561 x 657 mm (21.6 x 22.1 x 25.9 in)
	Net Weight	27.2 kg (60 lb)
	Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
