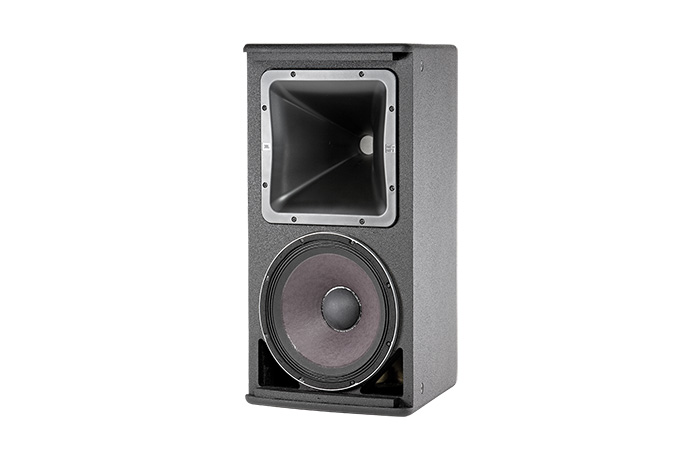

Loa JBL AM 5215

Model: Loa JBL AM 5215

Hãng: JBL/Mỹ (Chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Mexico

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 49.790.000 vnđ

AM5215/64/66/95/26 Medium-power 15" Two-way, 400W/1600W 8ohms 131dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

2-Way Loudspeaker System with 1 x 15" LF

The AM5215 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 265H-1 380 mm (15 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent coverage in a variety of patterns. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

FEATURES

∧

265H-1 Differential Drive® Low-Frequency Driver
2408H-1 High-Frequency Compression Driver
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable waveguide for vertical or horizontal orientation
Bi-Amp/Passive Switchable
Available in Black, White and WRC/WRX weather resistant finishes

SPECIFICATIONS

	Frequency Range (-10 dB)	35 Hz - 20 kHz
	Frequency Response (±3 dB)	41 Hz – 18 kHz
	Coverage Pattern	/64: 60° x 40° /66: 60° x 60° /95: 90° x 50° /26: 120° x 60°
	Directivity Factor (Q)	14.5
	Directivity Index (DI):	11.6 dB
	Crossover Modes	Bi-amp/Passive switchable
	Passive Crossover Frequency	2 kHz
	Transducer Power Rating (AES)	LF: 500 W (2000 W peak), 2 hrs 350 W (1400 W peak), 100 hrs HF: 40 W (160 W peak), 2 hrs
	Long-Term System Power Rating (IEC)	Passive mode: 350 W (1400 W peak), 100 hrs
	Maximum SPL	Bi-amp mode: LF: 125 dB-SPL cont avg HF: 131 dB-SPL cont avg.
	System Sensitivity (1W @ 1m)	Passive mode: 98 dB SPL
	Low Frequency Driver	1 x JBL 265H-1 380 mm (15 in) driver with 50.8 mm (2 in) dual voice coil
	Nominal Impedance	8 ohms
	Sensitivity (1W @ 1m, within operational band)	99 dB SPL
	High Frequency Driver	JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
	Nominal Impedance	8 ohms
	Sensitivity (1W @ 1m)	115 dB SPL
	Waveguide	PT-H66HF-1
	Enclosure	Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
	Suspension Attachment	15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
	Finish	Black DuraFlex™ finish. White available upon request.
	Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
	Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
	Environmental Specifications	Mil-Std 810; IP-x3 per IEC529.
	Dimensions (H x W x D in vertical cabinet orientation)	783 x 422 x 504 mm (30.8 x 16.6 x 19.85 in)
	Net Weight	25.0 kg (55 lb)
	Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-1
