Loa JBL AM 5212

Model: Loa JBL AM 5212

Hãng: JBL/Mỹ (Chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Mexico

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 47.290.000 vnđ

AM5212/64/66/95/00/26 Medium-power 12" Two-way, 400W/1600W 8ohms 131dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

2-Way Loudspeaker System
with 1 x 12" LF

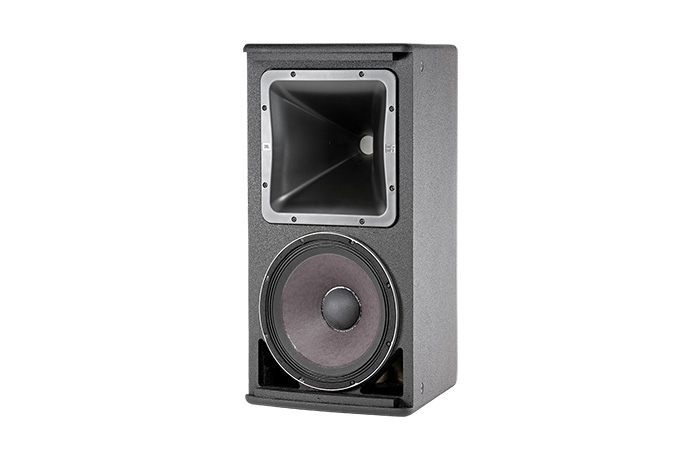

The AM5212/64 is a medium power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive® dual voice coil and dual magnetic gap 262H-1 300 mm (12 in) low frequency driver and 2408H-1 high frequency 38 mm (1.5 in) exit, 38 mm (1.5 in) voice-coil compression driver. The large format PT™ Progressive Transition waveguide provides excellent 60° x 40° coverage. The waveguide is rotatable so the loudspeaker system can be used in either the vertical or horizontal orientation. High-slope passive networks minimize band overlap. Well-controlled off-axis response enhances arrayability.

FEATURES

∧

60° x 40° Coverage
262H-1 Differential Drive® Low-Frequency Driver
2408H-1 High-Frequency Compression Driver
Large PT™ Progressive Transition waveguide for excellent pattern control and low distortion
Rotatable waveguide for vertical or horizontal orientation
Bi-Amp/Passive Switchable
Available in Black, White and WRC/WRX weather resistant finishes

SPECIFICATIONS

	Frequency Range (-10 dB)	37 Hz – 20 kHz
	Frequency Response (±3 dB)	43 Hz – 18 kHz
	Coverage Pattern	/64: 60° x 40° /66: 60° x 60° /95: 90° x 50° /00: 100° x 100° /26: 120° x 60°
	Crossover Modes	Bi-amp/Passive switchable
	Passive Crossover Frequency	1.5 kHz
	Transducer Power Rating (AES)	LF: 400 W (1600 W peak), 2 hrs 300 W (1200 W peak), 100 hrs HF: 40 W (160 W peak), 2 hrs
	Long-Term System Power Rating (IEC)	Passive mode: 300 W (1200 W peak), 100 hrs
	Maximum SPL	Bi-amp mode: LF: 122 dB HF: 131 dB
	System Sensitivity (1W @ 1m)	Passive mode: 96 dB SPL
	Low Frequency Driver	1 x JBL 262H-1 300 mm (12 in) driver with 50.8 mm (2 in) dual voice coil
	Nominal Impedance	8 ohms
	Sensitivity (1W @ 1m, within operational band)	97 dB SPL
	High Frequency Driver	JBL 2408H-1, 38 mm (1.5 in) exit compression driver, 38 mm (1.5 in) voice coil
	Nominal Impedance	8 ohms
	Sensitivity (1W @ 1m)	113 dB SPL
	Waveguide	PT-H126HF-1
	Enclosure	Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply birch plywood
	Suspension Attachment	15 points (4 top, 4 bottom, 2 each side, 3 rear), M10 threaded hardware
	Finish	Black DuraFlex™ finish. White available upon request.
	Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
	Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
	Environmental Specifications	Mil-Std 810; IP-x3 per IEC529
	Dimensions (H x W x D in vertical cabinet orientation)	713 x 371 x 458 mm (28.06 x 14.6 x 18.1 in)
	Net Weight	20.2 kg (45 lb)
	Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers U-Bracket MTU-3
