Loa JBL AL 7115

Model: Loa JBL AL 7115

Hãng: JBL/Mỹ (Chính hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Mexico

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 48.900.000 vnđ

AL 7115 High-power 15" Low Freq, 600W/2400W 8-ohms 132dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

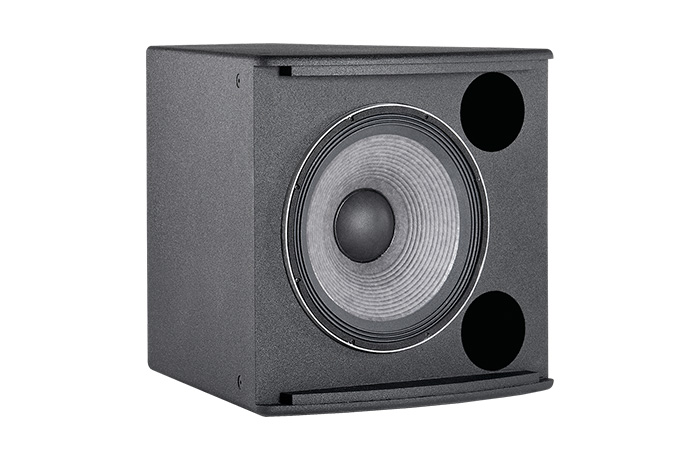

High Power Single 15" Low Frequency Loudspeaker

AL7115 is a high power, low frequency loudspeaker system comprised of one 380 mm (15 in) Differential Drive® low frequency driver in a front-loaded, vented configuration. The trapezoidal cabinet is fitted with M10 threaded suspension points. Pre-engineered array bracketry is available. AL7115 is part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of applications.

FEATURES

∧

1 x 15" 2265H Differential Drive® Low- Frequency Driver.
Large vent area for high output with low distortion.
Arrays with various AE Series mid-high frequency and compact 2-way models (see AE Series Array Guide).

SPECIFICATIONS

	Frequency Range (-10 dB)	40 Hz – 4.2 kHz
	Frequency Response (±3 dB)	47 Hz - 3.0 kHz
	Transducer Power Rating (AES)	1000 W (4000 W peak), 2 hrs
	Long-Term System Power Rating (IEC)	600 W (2400 W peak), 100 hrs
	Maximum SPL	50 Hz –125 Hz: 127 dB-SPL cont avg (133 dB peak) 125 Hz – 800 Hz: 126 dB-SPL cont avg (132 dB peak)
	System Sensitivity (dB-SPL, 1W @ 1m)	50 Hz – 125 Hz: 97 dB 125 Hz – 800 Hz: 97 dB
	Nominal Impedance	8 ohms
	Low Frequency Driver	1 x JBL 2265H 380 mm (15 in) Differential Drive driver with 75 mm (3 in) dual voice coil
	Enclosure	Trapezoidal with 15 degree side angles, 16 mm (5/8 in) exterior grade 11-ply Finnish birch plywood
	Suspension Attachment	13 points (3 top, 3 bottom, 2 each side, 3 rear), M10 threaded hardware
	Finish	Black DuraFlex™ finish. White available upon request.
	Grille	Powder coated 14 gauge perforated steel, with acoustically transparent black foam backing.
	Input Connector	NL4 Neutrik Speakon® and CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs. Speakon in parallel with barrier strip for loop-through.
	Environmental Specifications	Mil-Std 810; IP-x3 per IEC529
	Dimensions (H x W x D in vertical cabinet orientation)	548 x 561 x 657 mm (21.6 x 22.1 x 25.9 in)
	Net Weight	25.9 kg (57 lb)
	Optional Accessories	M10 x 35 mm forged shoulder eyebolts with washers. Optional planar array frame kit. See AE Series Bracket Guide.
