Loa JBL ACW 129

Model: Loa JBL ACW 129

Hãng: JBL/Mỹ (chính Hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Trung Quốc

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 26.500.000 vnđ

AWC129 All-Weather Compact 2-Way Coaxial Loudspeaker with 12" LF, 150W/1000W 8-ohms 128dB

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

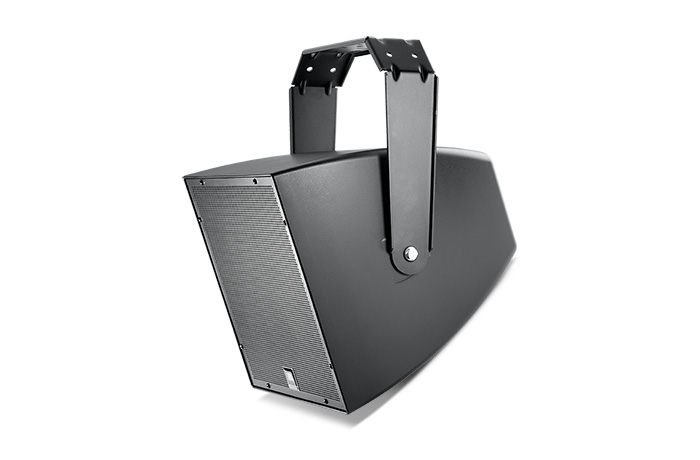

All-Weather Compact 2-Way Coaxial Loudspeaker with 12" LF

The AWC129 is a compact, coaxial-driver, 2-way, highly weather-resistant full-range loudspeaker system which is ideal for speech and music in a wide variety of applications, including sports facilities, racetracks, stadiums, fairgrounds, rodeos, skating rinks, themed entertainment venues, cruise ships, water parks, outdoor background music/paging systems, swimming pools, and a wide variety of other outdoor or indoor venue types.

FEATURES

∧

Highly weather-resistant IP56 rating
Consistent 90° x 90° broadband pattern control
Components:
• 300 mm (12 in) woofer with Kevlar-reinforced cone and 75 mm (3 in) voice coil.
• 25 mm (1 in) exit compression driver with unique patented design and high temperature polymer diaphragm.
Extraordinary clarity for speech, with extended frequency response for music.
Advanced high-slope crossover network for constant coverage and smooth, natural midrange.
400 Watt power handling (average continuous pink noise) with high sensitivity provides high SPL capability.
High-power passive crossover network.
Overload protection
55 Hz – 20 kHz frequency response.
200 Watt 70V/100V multi-tap (built-in transformer)
direct 8Ω low-impedance.

SPECIFICATIONS

	Frequency Range (-10 dB)	55 Hz – 20 kHz
	Frequency Response (±3 dB)	80 Hz – 20 kHz
	Coverage Pattern	90° x 90°
	Directivity Factor (Q)	10.1 (1 k – 16 kHz)
	Directivity Index (DI)	9.5 dB (1k – 16 kHz)
	Long-Term System Power Rating (IEC)	400 W (1600 W peak), 2 hrs. 250 W (1000 W peak), 100 hrs
	Sensitivity (2.83V @ 1m)	96 dB (Ave. 80 Hz – 20 kHz)
	Maximum SPL	Direct 8Ω: 122 dB (peaks of 128 dB) 200 W Tap: 119 dB
	Crossover Network	1.5 kHz, 3rd order (18 dB/oct) high-pass plus conjugate to HF, 2nd order low-pass to LF
	Nominal Impedance	8 ohms
	Transformer Taps	70V: 200W, 100W, 50W, 25W 100V: 200W, 100W, 50W
	Low Frequency Driver	Kevlar-reinforced cone with weather treatment, 75 mm (3 in) voice coil.
	High Frequency Driver	25 mm (1 in) diaphragm and voice coil diameter, high temperature polymer diaphragm, patented design, fluid-cooling.
	HF Driver Protection	Minimum audibility SonicGuard™ HF overload protection
	Enclosure	ABS with Glass enclosure, heavily braced
	Attachment	Two M10 (fine-thread) points for included U-bracket. M6 secondary safety attachment point on back panel.
	Grille	Corrosion-resistant zinc-rich extra-thick powder coated steel grille, 3- layer assembly with foam and woven poly mesh backing.
	Input Connection	CE-compliant covered barrier strip terminals. Barrier terminals accept up to 9 mm outside 4 mm inside open-lug (#6, #8 or #10) plus bare wire up to 2.5 mm2 (12 AWG) wire or spade lugs. Terminal compartment cover equipped with gland nut that forms water-tight seal with round-jacketed cables with outside diameters between 4.0 mm (0.16") and 9.0 mm (0.36")
	Environmental	IP56 per IEC529, with a minimum 5° downward aiming angle. Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV, and ASTM G85 for salt spray (168 hrs).
	Dimensions	402 x 402 x 445mm (15.8 x 15.8 x 17.5 in), cabinet 470 mm (18.5 in) depth with gland nut 542 mm (21.4 in) including bracket extending to back
	Colors	Available in gray (similar to Pantone 420C) and black (-BK)
	Net Weight	15.9 kg (35.0 lb), 18.9 kg (41.5 lb) with u-bracket
	Shipping Weight	23.4 kg (51.5 lbs)
	Included Accessories	U-bracket, matches loudspeaker color (gray or black), zinc-rich extrathick powder coated, steel.
