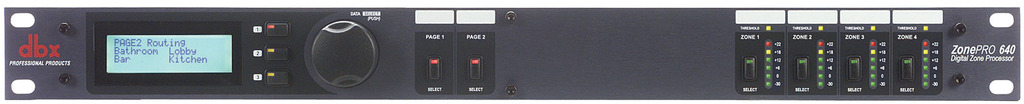

DBX Zonepro 640

Model: DBX Zonepro 640

Hãng: DBX/Mỹ (Chính hãng, có CO-CQ)

Tập đoàn: Harman Pro

Xuất xứ: Mỹ

Bảo hành: 12 tháng, theo tiêu chuẩn Hãng SX

Giá bán: 16.850.000 vnđ

640 Recorder Mixer, 32 Mic/Line + 4 Stereo-Line, 8 Groups, 10 Aux

Để biết thêm thông tin chi tiết về sản phẩm
Vui lòng liên hệ cho chúng tôi theo địa chỉ:
Email: phamhung@hdchanoi.com hoặc gọi điện
CSKH của HDC sẽ giúp bạn.
Tel: 0903445356 - - Tel/fax: 04. 3978 08 02

Thông tin sản phẩm
Thông số kỹ thuật

Features

Advanced Feedback Suppression (AFS™)

Autowarmth®

Auto Gain Control

Compression

Limiting

Noise Gating

Notch Filtering

Bandpass and Crossover Filters

Parametric EQ

Security Lockout

Wall Panel Control

RS-232 Control

Windows® 2000 and XP GUI

IEC, UL and CSA Approvals

Specifications

Input	(6 total) (2) Switchable line or mic inputs (4) RCA Source
Input Connectors	Euroblock (Line and Mic) RCA (Source)
Input Type	Electronically balanced/RF-filtered
Input Impedance	50k ohm balanced, >75k ohm unbalanced
Max Input	+20dBu Mic/Line, +12dBu RCA
CMRR	>40dB, typically >55dB @ 1 kHz
Mic Preamp gain	30 to 60dB
Mic Preamp Equivalent Input Noise (EIN)	<-118dB
Mic Preamp Phantom Power	15V
Output	4 total
Output Connectors	Euroblock
Output Type	Electronically Balanced, RF Filtered
Output Impedance	120 ohms balanced, 60ohm unbalanced
Max Output	+20dBu
A/D Converter	dbx Type IV™ conversion system
A/D Dynamic Range	(line) >113 dB, A-weighted, >110 dB unweighted
Type IV Dynamic Range	>119dB, A-weighted, 22kHz; BW: >117dB, unweighted, 22kHz BW
Digital Output	RCA 24-Bit oversampling
Digital Output Dynamic Range	>114 dB A-weighted, 110dB unweighted
Sample Rate	48kHz
D/A Dynamic Range	112 dB A-weighted, 109dB unweighted
Dynamic Range	>109 dB A-weighted, >106 dB unweighted
THD+Noise	0.003% typical at +4dBu, 1kHz, 0dB gain
Frequency Response	20Hz - 20kHz, +/-0.5dB
Interchannel Crosstalk	>80dB typical
Propagation Delay	0.6 msec
Operating Voltage	100VAC 50/60Hz, 120VAC 60Hz and 230VAC 50/60Hz
Power Consumption	29 W
设备重量	6.8 lbs.(3.1 kg)
Shipping Weight	8.8 lbs. (4.0 kg)
Dimensions	1.75” H x 5.75” D x 19” W
Safety Agency Certifications	UL 600065, IEC 60065, EN 55013, E60065
